FAG product, manufacturer part number F11205.

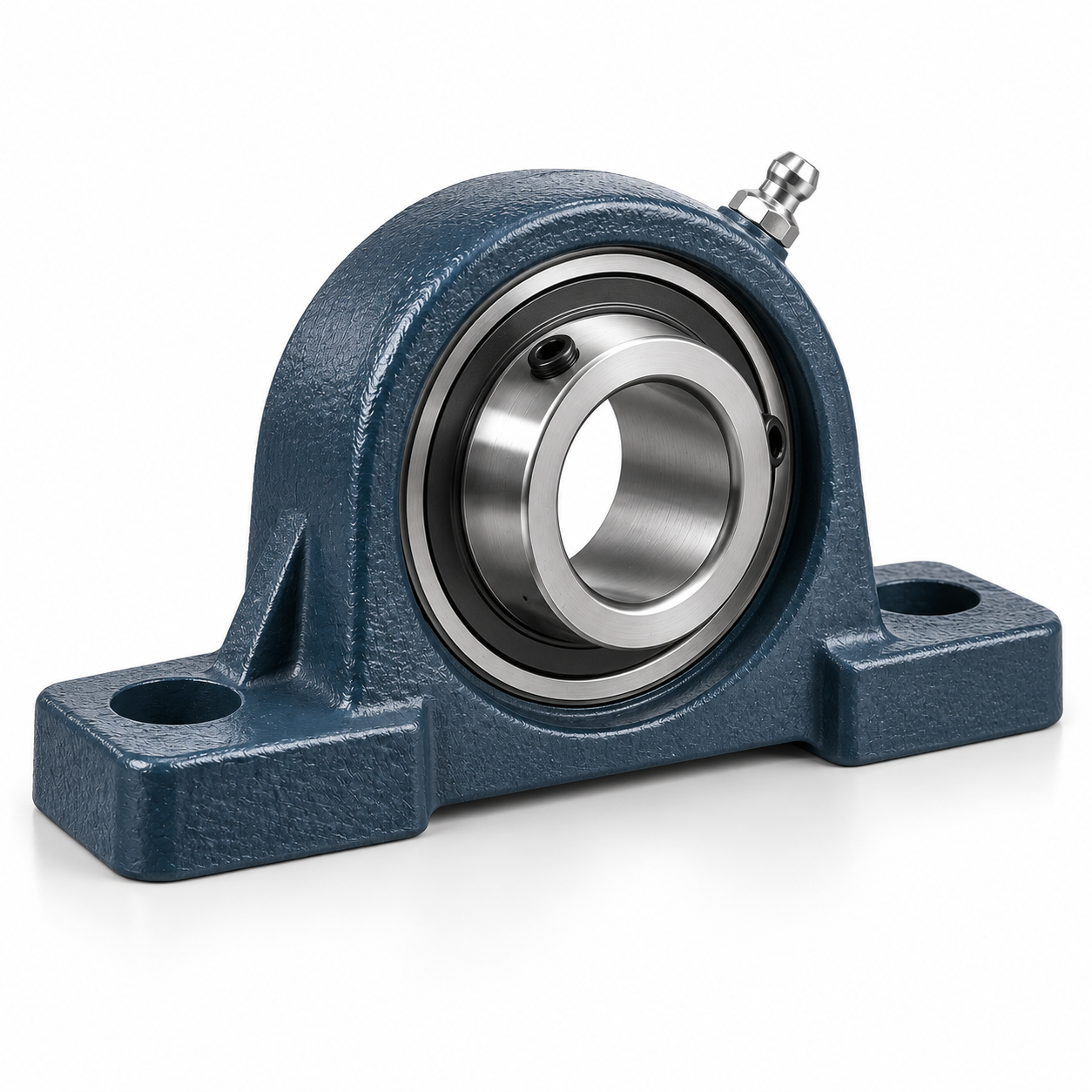

Product classification: Bearings & Related Products > Housings, Inserts & Bearing Units > Mounted Bearing Units.
FAG F11205
| Manufacturer Part Number | F11205 |
|---|---|
| Bore Diameter | 25 mm |
| Width | 46 mm |
| Height | 100 mm |
| Weight | 1.1 kg |
| Other Dimensions | Shaft diameter (d): 25; Total width with cover (g2): 46; Flange width (a): 110; Height flange (h1): 100; Outside diameter bearing (D): 52; Pitch circle diameter fixing holes (m): 96; Thickness of flange (c): 10; Distance shaft axis (h): 38; Shaft diameter d: 25; Shaft axis height h: 38; Overall height h1: 100; Flange thickness c: 10; Flange width a: 110; Mounting pitch circle m: 96; Bearing seat diameter D: 52; Overall width with cover g2: 46 mm |
